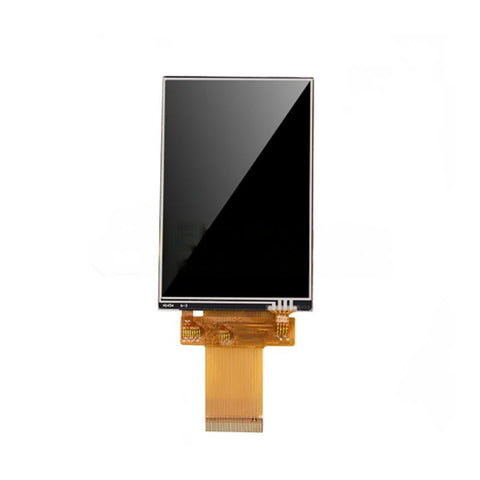

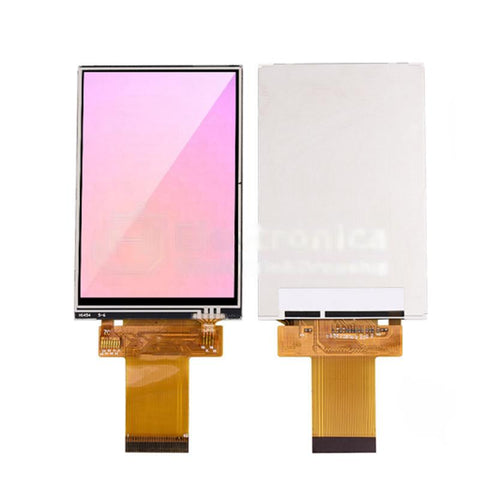

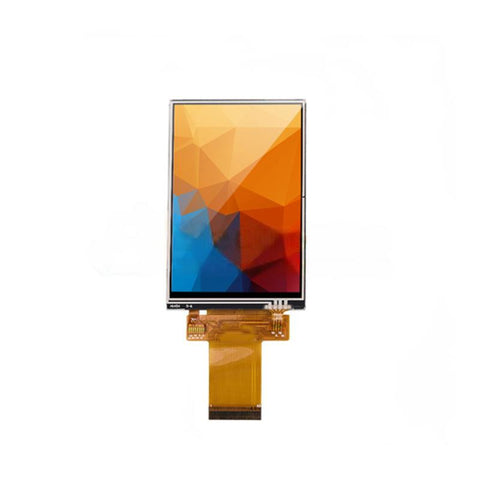

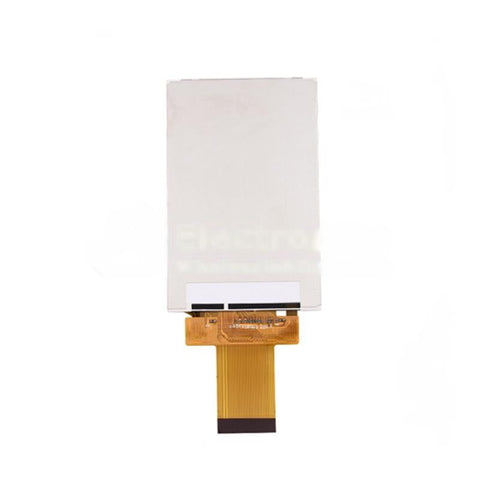

ILI9488 ST7796 3/4-Wire 8/16 Bit 3.5 Inch TFT LCD Display

Experience the versatile and reliable 3.5-inch TFT LCD display that utilizes the powerful ILI9488 and ST7796 driver chip. This display offers a high-resolution display with dimensions of 320x480, ensuring sharp and clear images.

Key specifications include a pin pitch of 0.5 mm, an external size of 54.5x84.71x4.3 mm, and a display size of 48.96x73.44 mm. The screen uses a Samsung LED backlight consisting of 6 diodes, requiring a current of 90mA.

The operating voltage is IOVCC=2.8/3.3V and VCC=3.3V. The maximum current consumption of the LCD driver is approx. 1.0mA at black screen. The screen operates effectively in temperatures from -20°C to +70°C and can be stored at temperatures from -30°C to +80°C.

The display has a 12:00 viewing angle and is equipped with a robust, hardened touchscreen, making it ideal for interactive use in various projects. For more technical information, you can find detailed specifications in this datasheet .

To get started using this screen in your projects, you can find a helpful guide here .

ILI9488 ST7796 3/4-Wire 8/16 Bit 3.5 Inch TFT LCD Display

Experience the versatile and reliable 3.5-inch TFT LCD display that utilizes the powerful ILI9488 and ST7796 driver chip. This display offers a high-resolution view with dimensions of 320x480, ensuring sharp and clear images.

The key specifications include a pin pitch of 0.5 mm, an external size of 54.5x84.71x4.3 mm, and a display size of 48.96x73.44 mm. The screen uses a Samsung LED backlight consisting of 6 diodes, requiring a current of 90mA.

The operating voltage is IOVCC=2.8/3.3V and VCC=3.3V. The maximum power consumption for the LCD driver is approximately 1.0mA when in black screen mode. The screen operates effectively in temperatures ranging from -20°C to +70°C and can be stored at temperatures from -30°C to +80°C.

Warranty and shipping

We do our best to quality assure all electronics before we send them out to you. This ensures that we do a good job and that you avoid unnecessary hassle in your development process. Errors can occur, but we see this incredibly rarely. If there are problems with the ordered equipment, you can always contact us , and we will be happy to help you solve the problem. Of course, you get a 2-year warranty on all our products.

We strive to ensure a fast and efficient delivery of your order. We ship from our remote warehouse, and you will typically receive your order within 7-15 business days. We deliver directly to you, and of course handle all customs and import duties, so you don't have to worry about anything.
This product description is partially autogenerated, so errors may occur. Contact us if you have any further questions about the product.
