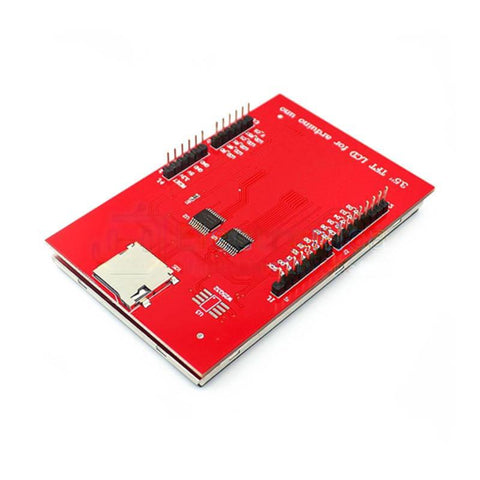

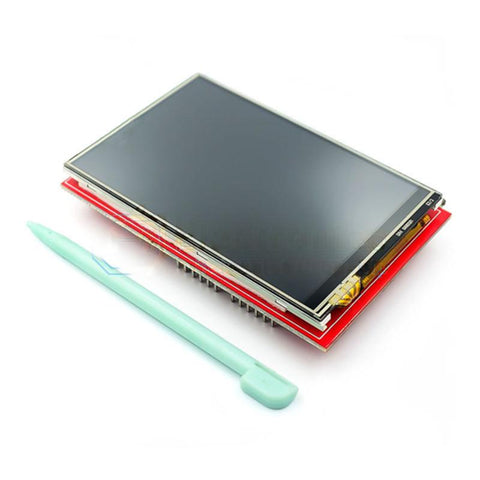

3.5 Inch 320x480 TFT LCD Color Screen Module

Experience a clear and vivid display with this 3.5 inch TFT LCD color display module. With a resolution of 320x480 pixels and a color depth of 65K, this display delivers rich color reproduction, perfect for graphic applications.

Specifications:

• Color: Red

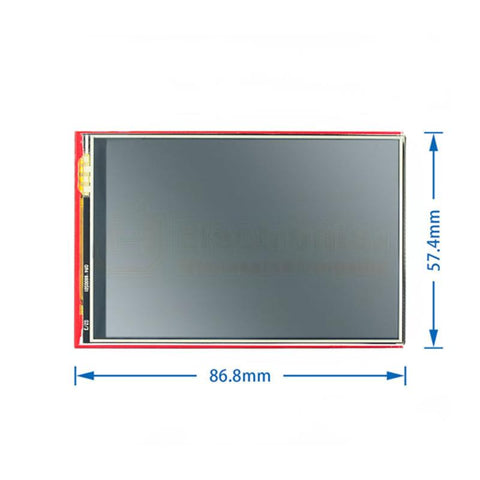

• Size: 86.8 x 57.4 mm
• Active area: 48.96 x 73.44 mm
• Driver element: a-Si TFT active matrix
• Pixel arrangement: RGB vertical stripe
• Driver IC: RM68140
• Backlight: White LED
• Viewing direction: 6 o'clock
• Resolution (dots): 320RGB x 480 dots
• Power consumption: approx. 90mA
• Data interface: 4-Wire SPI interface
• VCC Voltage: 3.3V - 5V
• IO Voltage: 3.3V

This module is compatible with various microcontrollers and is ideal for use in projects with Arduino UNO and MEGA 2560. It supports a wide range of applications, from games to user interfaces.

For further information and a detailed guide to getting started, please visit this tutorial .

English description:

Color: Red Resolving Power: 320x480 mm Size: 86.8 x 57.4 mm Active area: 48.96 x 73.44 mm Driver element: a-Si TFT active matrix Pixel arrangement: RGB vertical stripe Driver IC: RM68140 Backlight: White LED Viewing Direction: 6 o'clock Color Depth: 65K Resolution (dots): 320 RGB x 480 dots Power consumption: about 90 mA Data Interface: 4-Wire SPI interface VCC Voltage: 3.3V - 5V IO Voltage: 3.3V

3.5 Inch 320x480 TFT LCD Color Screen Module

Experience a clear and vibrant display with this 3.5 inch TFT LCD color screen module. With a resolution of 320x480 pixels and a color depth of 65K, this display delivers rich color reproduction, perfect for graphic applications.

Specifications:

• Color: Red
• Size: 86.8 x 57.4 mm
• Active area: 48.96 x 73.44 mm
• Driver element: a-Si TFT active matrix
• Pixel arrangement: RGB vertical stripe
• Driver IC: RM68140
• Backlight: White LED
• Viewing direction: 6 o'clock
• Resolution (dots): 320 RGB x 480 dots
• Power consumption: about 90 mA
• Data interface: 4-Wire SPI interface
• VCC Voltage
